U-Shape Oriented Magnets
U-Shape Oriented Magnets
We are Manufacturer, Supplier, Exporter of U Shaped Oriented Magnets, Alnico Rectangular Bars With Slots At The Ends, Permanent Magnets and our set up is situated in Satara, Maharashtra, India.
Alnico Rectangular Bars with Slots at the ends Alloy : Alnico - 6
Finish : Ground on Height usual application : Magnetic Chucks
Finish : Ground on Height usual application : Magnetic Chucks

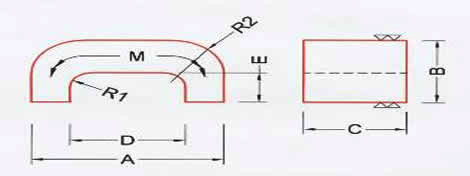

Magnet Drg. No. |
Dimensions in mm |
Weight In Grams |
||||||
|---|---|---|---|---|---|---|---|---|
A |
B |
C |
D |
E |
R1 |
R2 |
||
6U304 |
22.0 |
7.5 |
8.0 |
10.0 |
2.0 |
1.5 |
9.0 |
7.0 |
6U301 |
22.0 |
7.5 |
10.0 |
10.0 |
2.0 |
1.5 |
9.0 |
9.2 |
6U302 |
22.0 |
7.5 |
12.0 |
10.0 |
2.0 |
1.5 |
9.0 |
10.6 |
6U305 |
22.0 |
7.5 |
15.0 |
10.0 |
2.0 |
1.5 |
9.0 |
13.8 |
